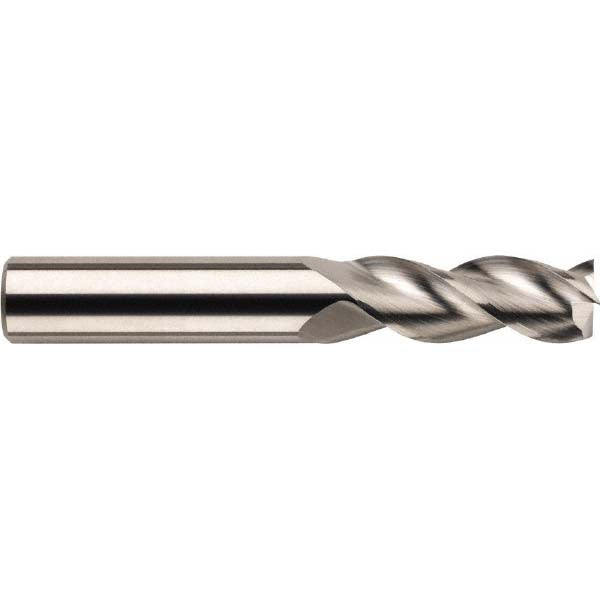

1/2" 3-Flute Solid Carbide Square End Mill - SGS 32710

MFR# 32710Series 43L

$143.17List $183.63 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 32710 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 5/8 length of cut, 6 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeLong

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.00000/-0.00043 in

Number of flutes3

Overall length in6

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
