SGS

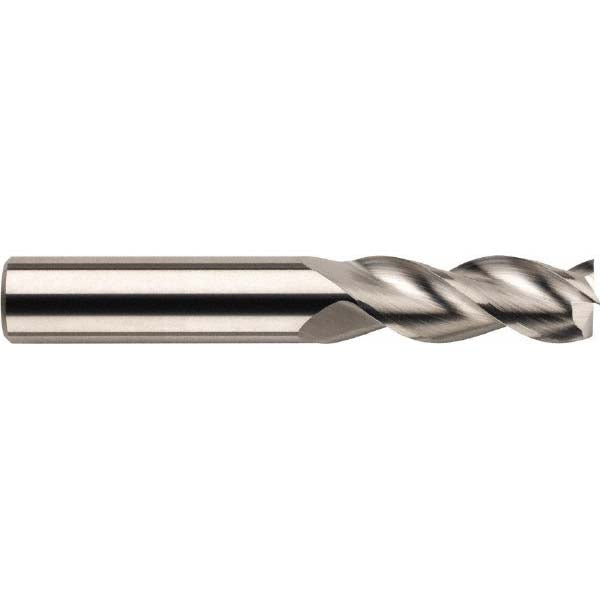

5/8" 3-Flute Solid Carbide Square End Mill - SGS 32714

MFR# 32714Series 43L

$276.32List $354.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 32714 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3/4 length of cut, 6 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeLong

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.00000/-0.00043 in

Number of flutes3

Overall length in6

Primary workpiece materialNon-Ferrous Metal

Reach length in3-3/8

Shank diameter in5/8

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
