SGS

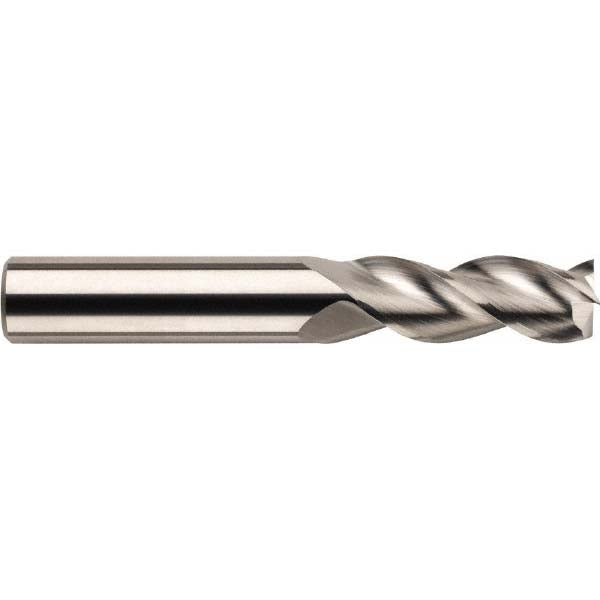

3/4" 3-Flute Solid Carbide Square End Mill - SGS 32716

MFR# 32716Series 43L

$328.39List $421.18 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 32716 is a 3/4 3-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1 length of cut, 6 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeLong

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0051 in

Number of flutes3

Overall length in6

Primary workpiece materialAluminum & Non-Ferrous

Reach length in2-3/8

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
