SGS

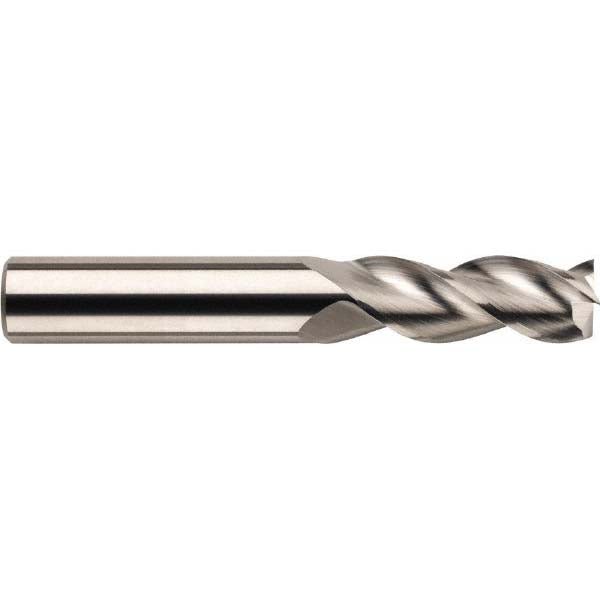

3/8" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 32733

MFR# 32733Series 43L

$106.11List $136.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 32733 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 1/2 length of cut, 4 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeLong

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.00000/-0.00035 in

Number of flutes3

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
