SGS

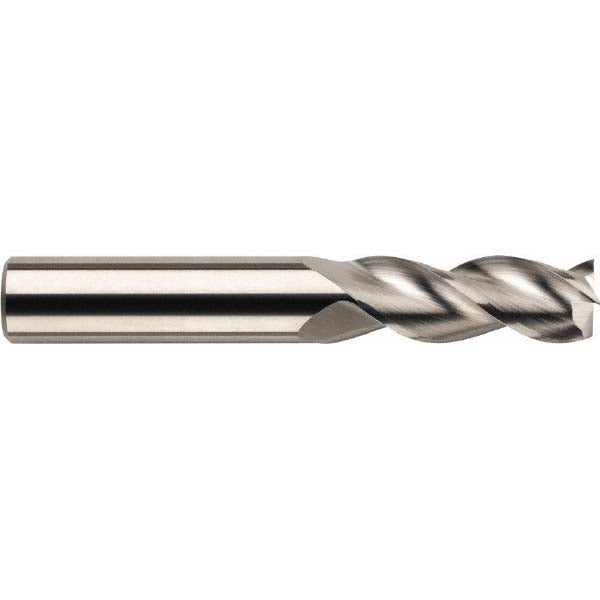

3/4" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 32742

MFR# 32742Series 43L

$423.20List $542.77 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 32742 is a 3/4 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 6 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeLong

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.00000/-0.00051 in

Number of flutes3

Overall length in6

Primary workpiece materialNon-Ferrous Metal

Reach length in3-3/8

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
