SGS

1" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 32743

MFR# 32743Series 43L

$633.61List $812.64 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

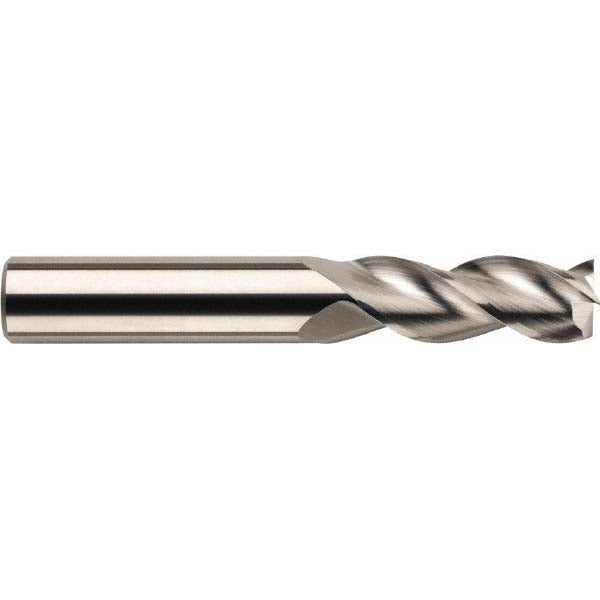

The SGS 32743 is a 1 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 1-1/4 length of cut, 6 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeLong

Material gradeMicrograin

Mill diameter in1

Mill diameter tolerance+0.00000/-0.00051 in

Number of flutes3

Overall length in6

Primary workpiece materialNon-Ferrous Metal

Reach length in2-3/8

Shank diameter in1

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
