SGS

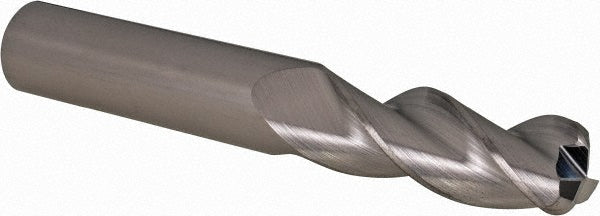

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - SGS 32766
MFR# 32766Series 43CR
$115.85List $146.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 32766 is a 1/2in 3-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 1-1/4in length of cut, 3-1/4in overall length. Series 43CR.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.1200
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-1/4in
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in1/2in
Mill diameter tolerance-0.0004/0.0000 in
Number of flutes3
Overall length in3-1/4in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
