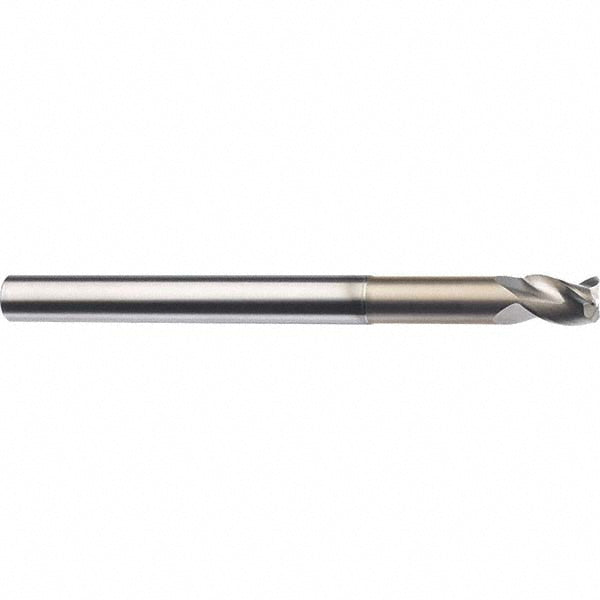

1/4in" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 32819

SGS

1/4in" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 32819

MFR# 32819Series 43LC

$63.52List $81.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingTIB2

Description

The SGS 32819 is a 1/4in 3-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 3/8in length of cut, 4in overall length. Series 43LC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTIB2
Coolant throughNo
Corner radius0.0100
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in3/8in
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in1/4in
Mill diameter tolerance-0.0004/0.0000 in
Neck diameter0.2300in
Number of flutes3
Overall length in4in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/2
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
