3/8in" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 32825

SGS

3/8in" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 32825

MFR# 32825Series 43CR

$103.64List $132.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingTIB2

Description

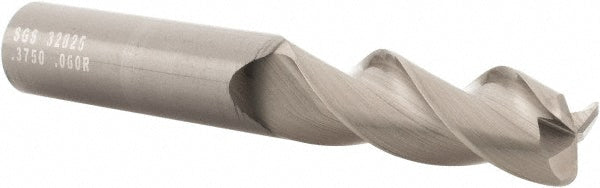

The SGS 32825 is a 3/8in 3-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 1in length of cut, 2-1/2in overall length. Series 43CR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTIB2
Coolant throughNo
Corner radius0.0600
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1in
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in3/8in
Mill diameter tolerance-0.0004/0.0000 in
Number of flutes3
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
