SGS
1/4" 4-Flute Solid Carbide Ball End Mill - SGS 33104
MFR# 33104Series 1LB
$39.82List $51.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
Description

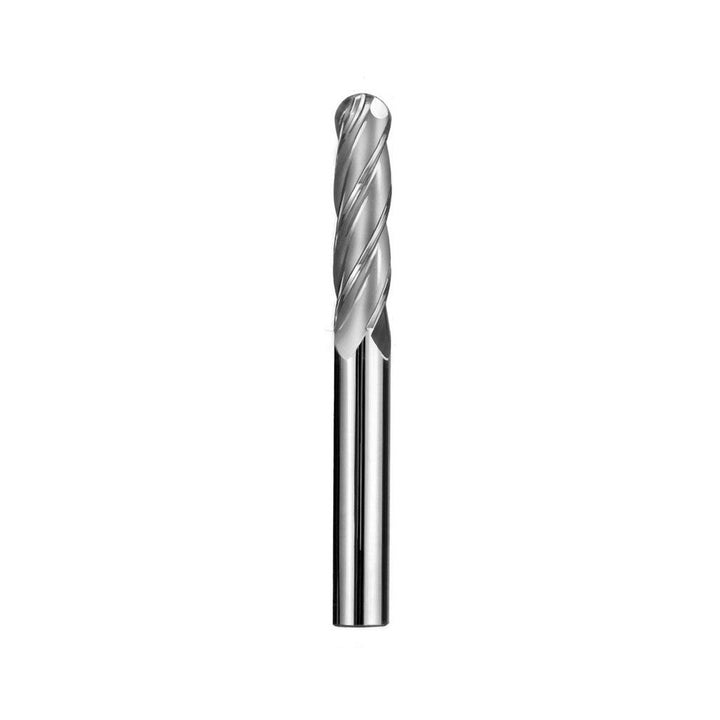

The SGS 33104 is a 1/4 4-flute Solid Carbide (Micrograin) ball end mill. 1-1/8 length of cut, 3 overall length. Series 1LB.
Specifications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length typeLong
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in3
Shank diameter in1/4
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexYes
