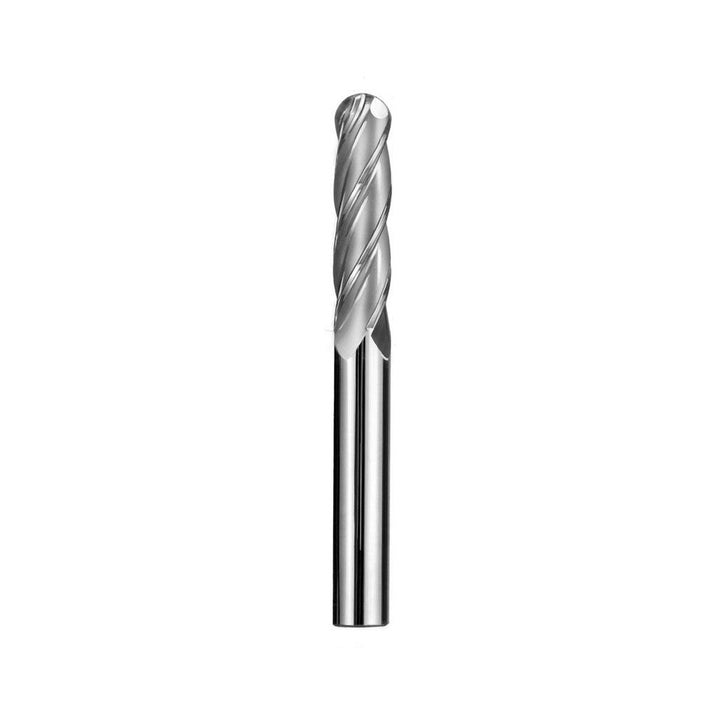

3/8" 4-Flute Solid Carbide Ball End Mill - SGS 33108

SGS

3/8" 4-Flute Solid Carbide Ball End Mill - SGS 33108

MFR# 33108Series 1LB

$58.18List $74.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 33108 is a 3/8 4-flute Solid Carbide (Micrograin) ball end mill. 1-1/8 length of cut, 3 overall length. Series 1LB.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length typeLong
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/8
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexYes
