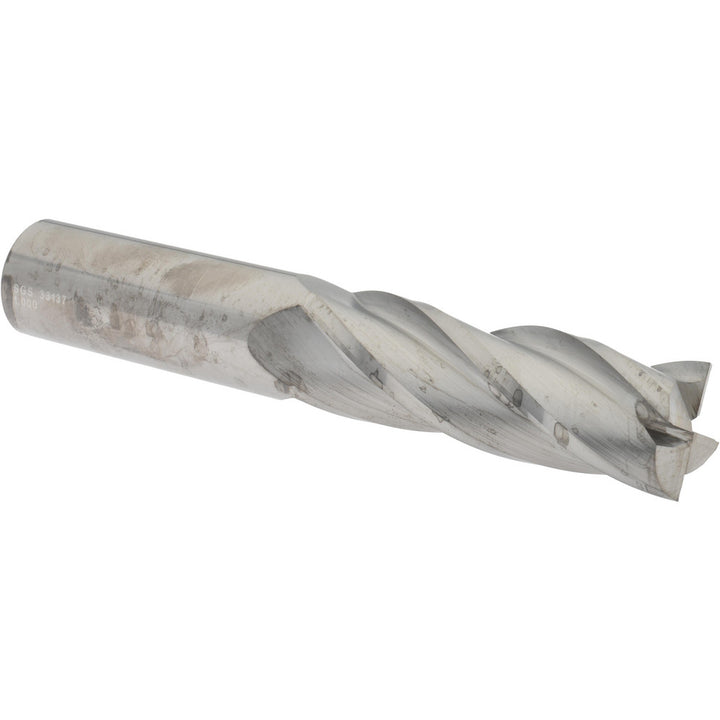

1" 4-Flute Solid Carbide Square End Mill - SGS 33137

SGS

1" 4-Flute Solid Carbide Square End Mill - SGS 33137

MFR# 33137Series 1EL

$512.58List $657.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide

Description

The SGS 33137 is a 1 4-flute Solid Carbide (Micrograin) square end mill. 3 length of cut, 6 overall length. Series 1EL.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in6
Shank diameter in1
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
