SGS

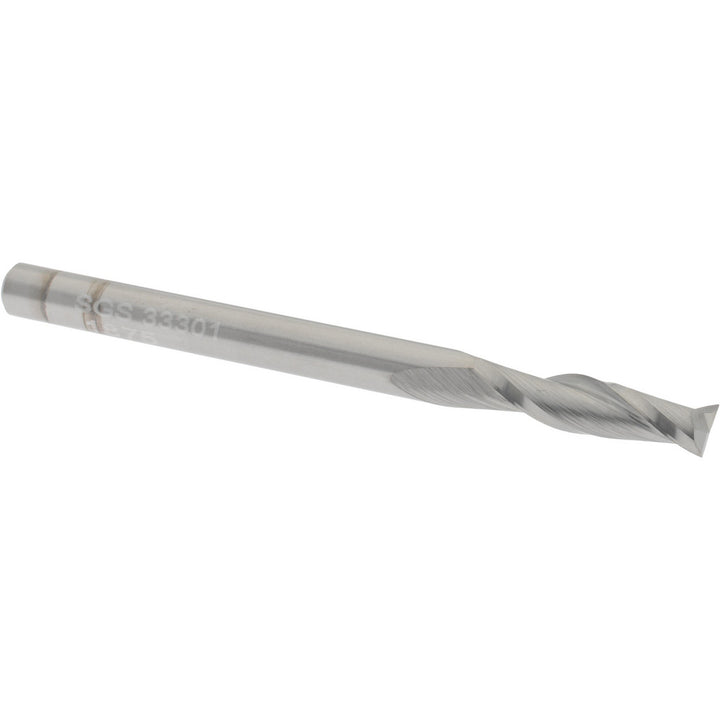

3/16" 2-Flute Solid Carbide Square End Mill - SGS 33301

MFR# 33301Series 3L

$26.13List $33.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 33301 is a 3/16 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 3/4 length of cut, 2-1/2 overall length. Series 3L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeLong

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes2

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
