SGS

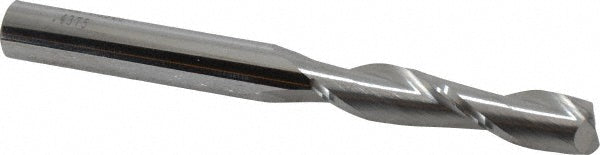

7/16" 2-Flute Solid Carbide Square End Mill - SGS 33309
MFR# 33309Series 3L
$84.66List $108.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes2
MaterialSolid Carbide
Description
The SGS 33309 is a 7/16 2-flute Solid Carbide (Micrograin) square end mill. 2 length of cut, 4-1/2 overall length. Series 3L.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in4-1/2
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
