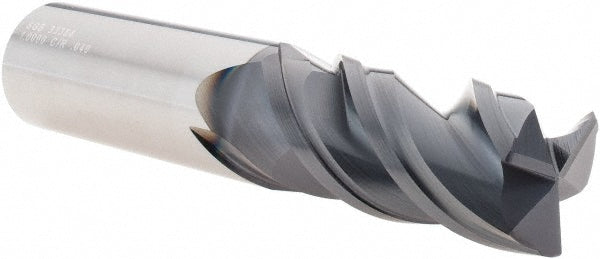

1in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 33354

SGS

1in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 33354

MFR# 33354Series 33C

$376.28List $482.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1in
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 33354 is a 1in 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2-1/4in length of cut, 5in overall length. Series 33C.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0400
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in2-1/4in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in1in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in5in
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
