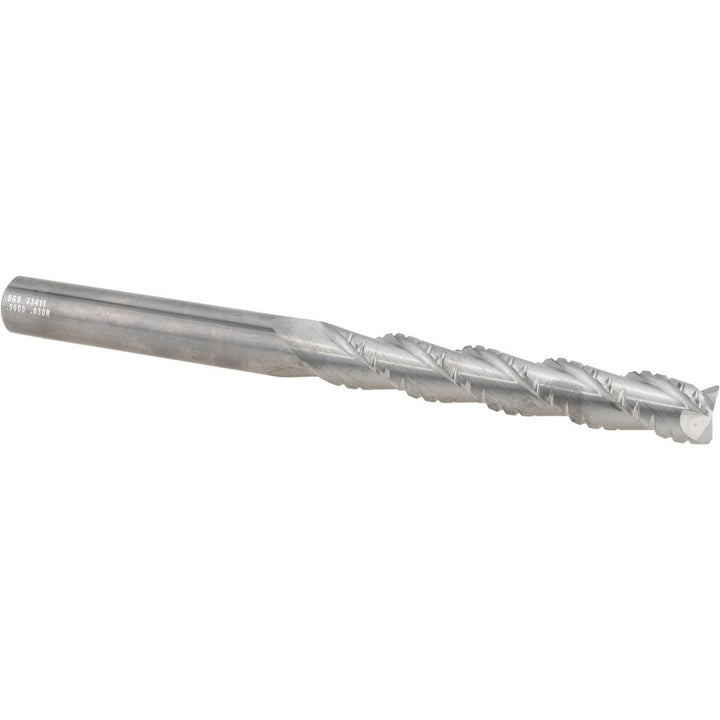

0.5" 3-Flute Solid Carbide Roughing End Mill - SGS 33411

SGS

0.5" 3-Flute Solid Carbide Roughing End Mill - SGS 33411

MFR# 33411Series 43

$172.72List $221.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 33411 is a 0.5 3-flute Solid Carbide roughing end mill. Series 43.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishBright/Uncoated
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut3.1250
Maximum helix angle38
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.000000 to -0.000430 in
Number of flutes3
PitchCoarse
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco1/2" 3-Flute Solid Carbide Square End Mill - Seco 17003163 $231.57 Kennametal0.5000" 3-Flute Solid Carbide Single End Mill - Kennametal 3866263 $235.09 SGS1/2" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34742 $181.79 Helical Solutions1/2" 3-Flute Solid Carbide Square End Mill, ZrN - Helical Solutions 01527 $168.00
