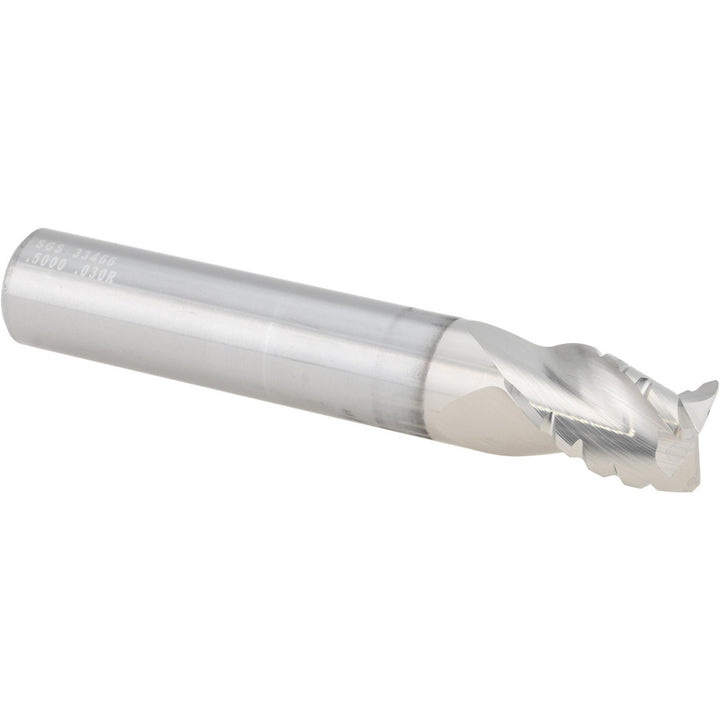

0.5" 3-Flute Solid Carbide Roughing End Mill, TiB2 - SGS 33466

SGS

0.5" 3-Flute Solid Carbide Roughing End Mill, TiB2 - SGS 33466

MFR# 33466Series 43

$110.69List $141.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 33466 is a 0.5 3-flute Solid Carbide roughing end mill with a Titanium Diboride finish for longer tool life. Series 43.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishTiB2
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.6250
Maximum helix angle38
Mill diameter0.5
Mill diameter frac in1/2
Mill diameter tolerance+0.000000 to -0.000430 in
Number of flutes3
PitchCoarse
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
