SGS

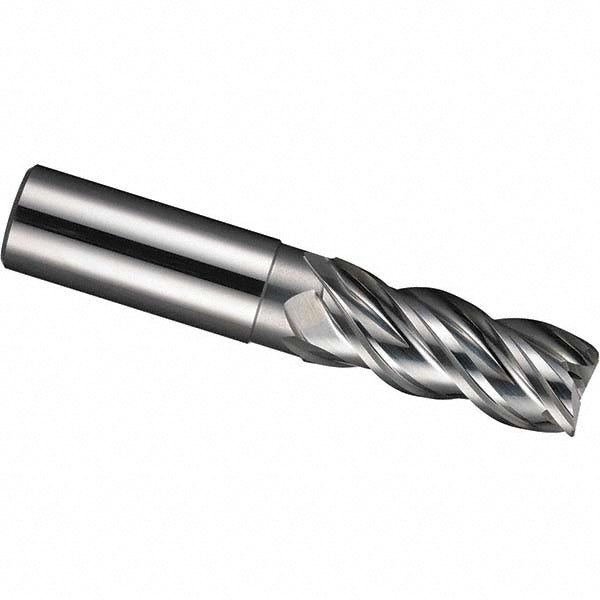

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34019

MFR# 34019Series APF

$241.71List $310.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTIB2

Description

The SGS 34019 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/4 overall length. Series APF.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTIB2

Coolant throughYes

Corner radius0.1200

Corner radius tolerance-0.0012 to 0.0012 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in1-1/4

Length typeStandard

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020 to 0.0004 in

Neck diameter0.4780

Number of flutes4

Overall length in3-1/4

Overall length tolerance+0.0600 to -0.0600 in

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Reach length in1-5/8

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
