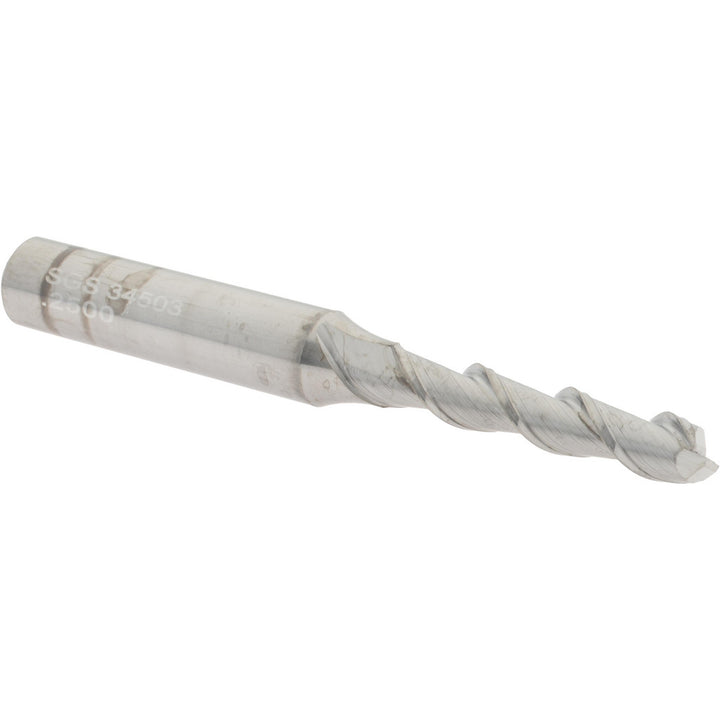

1/4" 2-Flute Solid Carbide Square End Mill - SGS 34503

SGS

1/4" 2-Flute Solid Carbide Square End Mill - SGS 34503

MFR# 34503Series 44

$112.86List $144.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide

Description

The SGS 34503 is a 1/4 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/16 overall length. Series 44.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length typeStub
Mill diameter in1/4
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes2
Overall length in3-1/16
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
