SGS
3/4" 2-Flute Solid Carbide Square End Mill - SGS 34525
MFR# 34525Series 44
$401.91List $515.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
Description

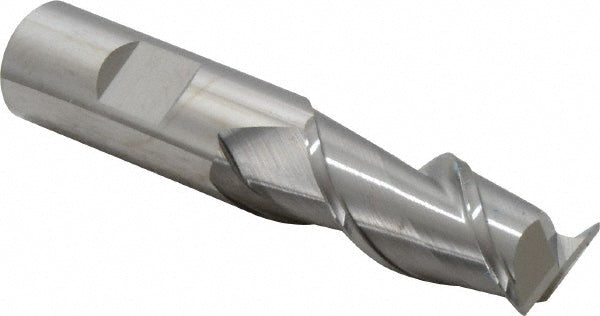

The SGS 34525 is a 3/4 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 3-7/8 overall length. Series 44.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8
Length typeStub
Mill diameter in3/4
Mill diameter tolerance+0.00000/-0.00051 in
Number of flutes2
Overall length in3-7/8
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
