SGS

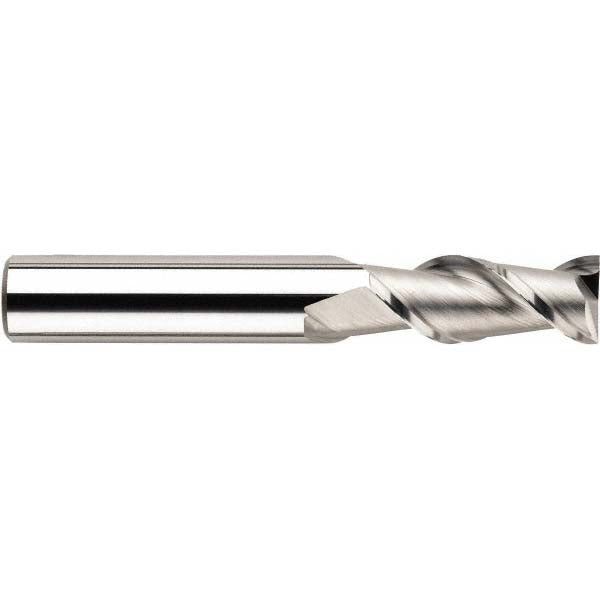

3/4" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34528
MFR# 34528Series 44
$699.89List $882.03
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 34528 is a 3/4 2-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 3 length of cut, 5-1/4 overall length. Series 44.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3
Length of cut range2.0000+
Length typeStub
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.00000/-0.00051 in
Number of flutes2
Overall length in5-1/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
