SGS

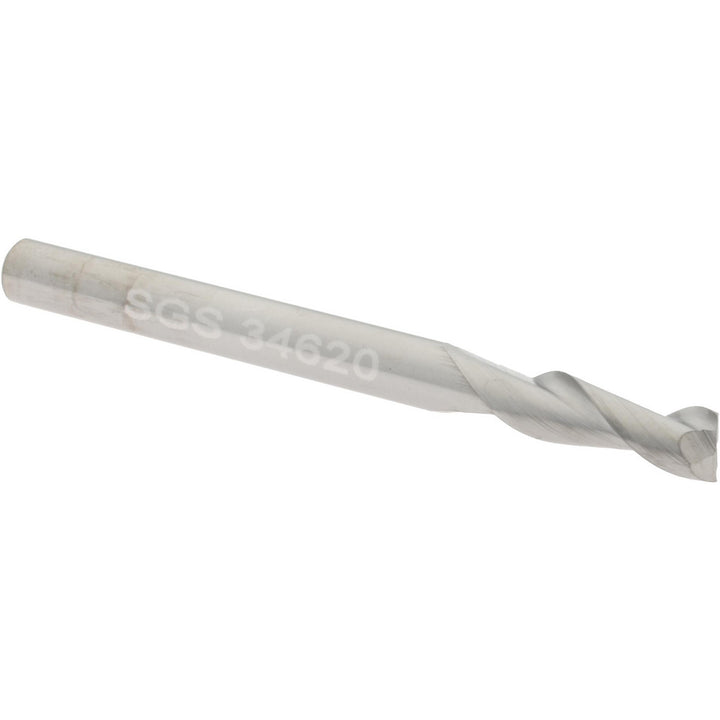

1/8" 2-Flute Solid Carbide Square End Mill - SGS 34620

MFR# 34620Series 47

$17.92List $22.99 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes2

MaterialSolid Carbide

Description

The SGS 34620 is a 1/8 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3/8 length of cut, 1-1/2 overall length. Series 47.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Length typeRegular

Material gradeMicrograin

Mill diameter in1/8

Mill diameter tolerance-0.0001/-0.0004 in

Number of flutes2

Overall length in1-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/8

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
