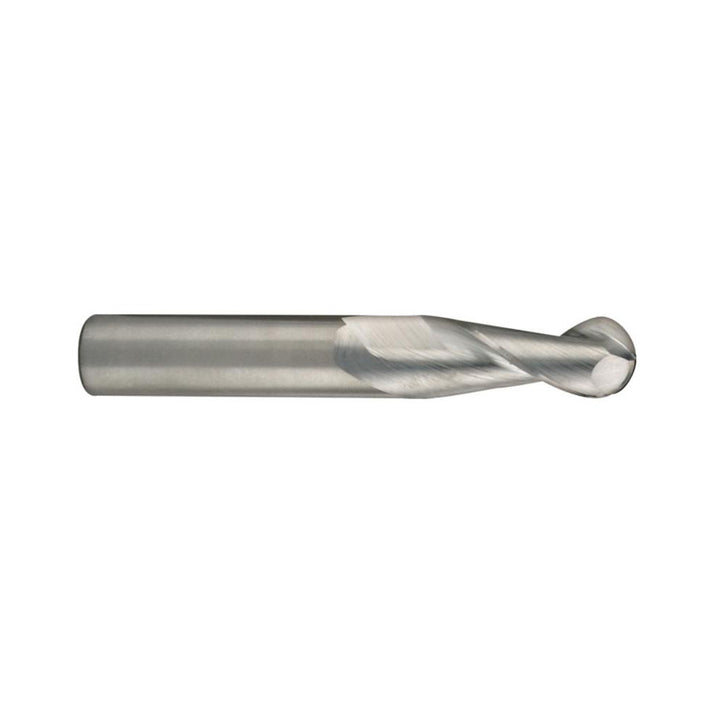

5/16" 2-Flute Solid Carbide Ball End Mill - SGS 34633

SGS

5/16" 2-Flute Solid Carbide Ball End Mill - SGS 34633

MFR# 34633Series 47B

$45.01List $57.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes2
MaterialSolid Carbide

Description

The SGS 34633 is a 5/16 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 13/16 length of cut, 2-1/2 overall length. Series 47B.

Specifications

ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in13/16
Length typeRegular
Manufacturers catalog number34633
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in5/16
Mill diameter tolerance-0.0001 to -0.0004 in
Number of flutes2
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexNo
