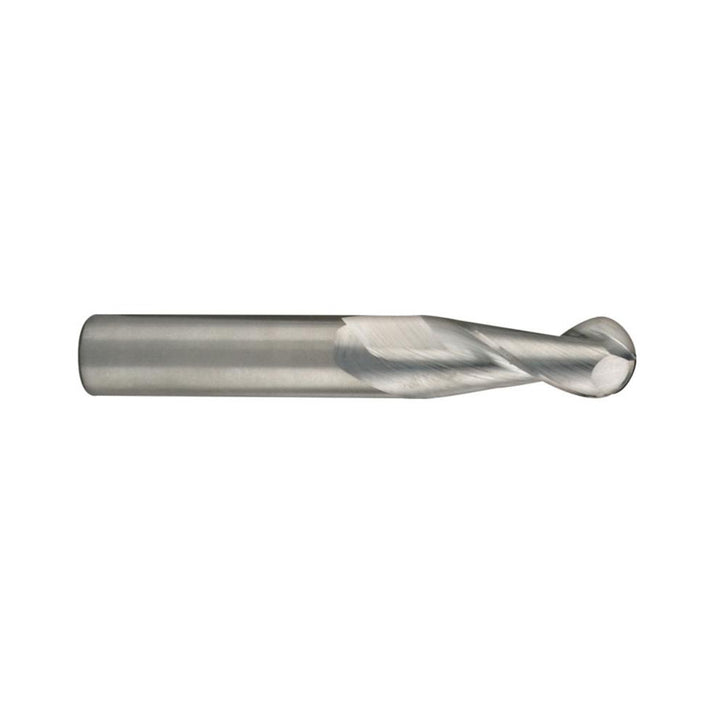

1" 2-Flute Solid Carbide Ball End Mill - SGS 34638

SGS

1" 2-Flute Solid Carbide Ball End Mill - SGS 34638

MFR# 34638Series 47B

$414.81List $532.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 34638 is a 1 2-flute Solid Carbide (Micrograin) ball end mill. Suited for non-ferrous metal. 2 length of cut, 4-1/2 overall length. Series 47B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in2
Length typeRegular
Manufacturers catalog number34638
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1
Mill diameter tolerance-0.0001 to -0.0004 in
Number of flutes2
Overall length in4-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexNo
