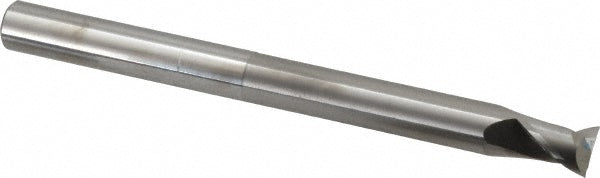

1/2" 2-Flute Solid Carbide Square End Mill - SGS 34643

SGS

1/2" 2-Flute Solid Carbide Square End Mill - SGS 34643

MFR# 34643Series 47E

$196.50List $247.64 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide

Description

The SGS 34643 is a 1/2 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 5/8 length of cut, 6 overall length. Series 47E.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance-0.0001/-0.0004 in
Number of flutes2
Overall length in6
Primary workpiece materialNon-Ferrous Metal
Reach length in3-3/8
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
