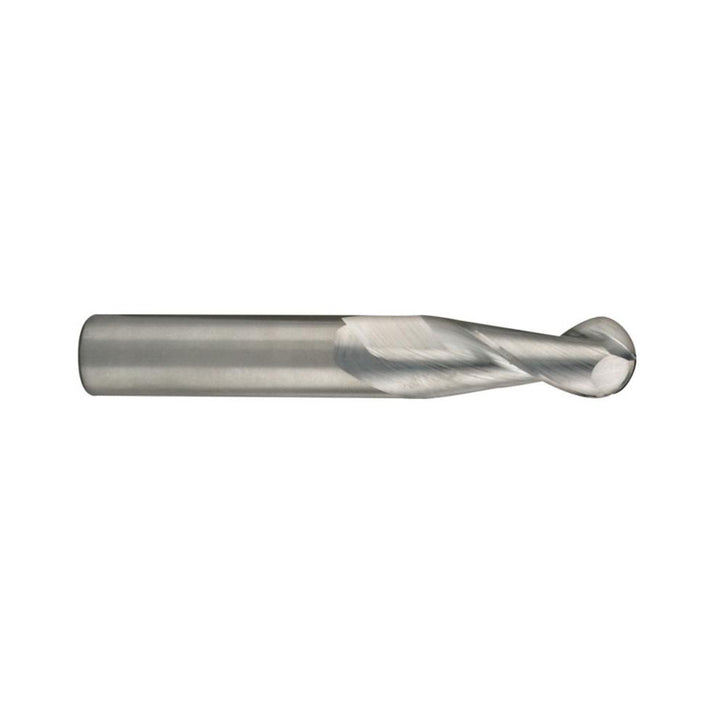

3/8" 2-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34673

MFR# 34673Series 47B

$62.20List $79.77 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 34673 is a 3/8 2-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 47B.

Specifications

ChipbreakerNo

Coating finishTiB2

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in1

Length typeRegular

Manufacturers catalog number34673

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/8

Mill diameter tolerance-0.0001 to -0.0004 in

Number of flutes2

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter tolerance+0.00000 to -0.00035 in

Single or double endSingle

Variable helixNo

Variable indexNo
