SGS

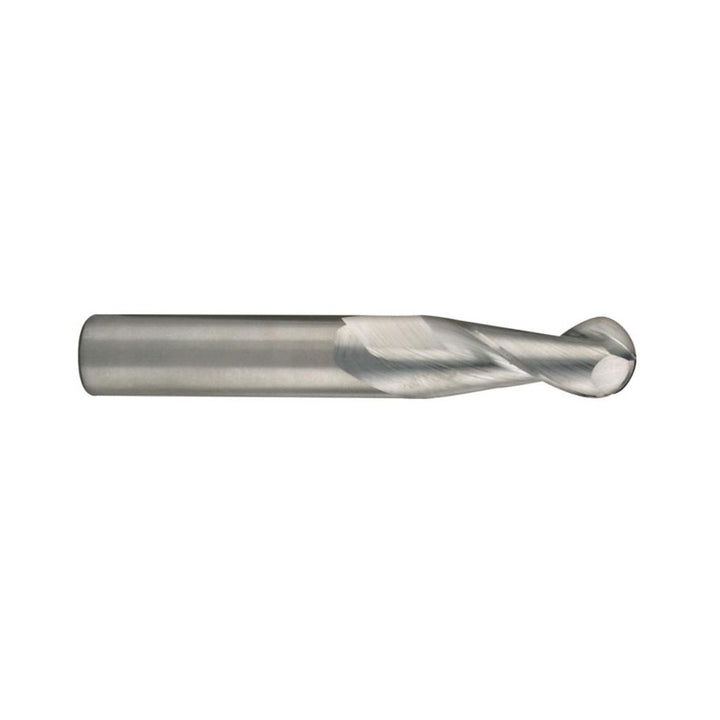

1" 2-Flute Solid Carbide Ball End Mill, TiB2 - SGS 34677
MFR# 34677Series 47B
$489.84List $628.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 34677 is a 1 2-flute Solid Carbide (Micrograin) ball end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 2 length of cut, 4-1/2 overall length. Series 47B.
Specifications
ChipbreakerNo
Coating finishTiB2
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in2
Length typeRegular
Manufacturers catalog number34677
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1
Mill diameter tolerance-0.0001 to -0.0004 in
Number of flutes2
Overall length in4-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexNo
