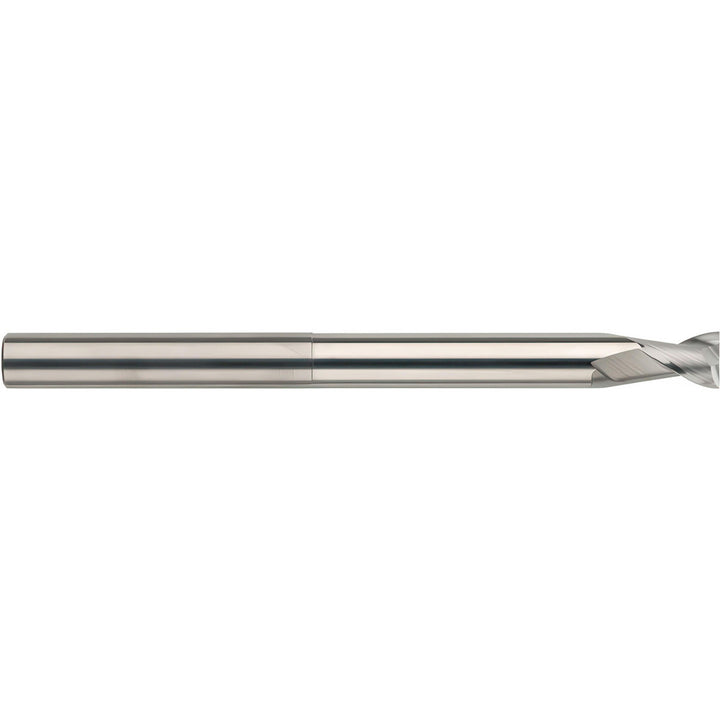

1/2" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34680

SGS

1/2" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34680

MFR# 34680Series 47E

$156.19List $200.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 34680 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill with a TiB2 finish for longer tool life. Suited for aluminum & non-ferrous. 5/8 length of cut, 6 overall length. Series 47E.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Coating finish familyTiB2
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance-0.0001/-0.0004 in
Number of flutes2
Overall length in6
Primary workpiece materialAluminum & Non-Ferrous
Reach length in2-1/8
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
