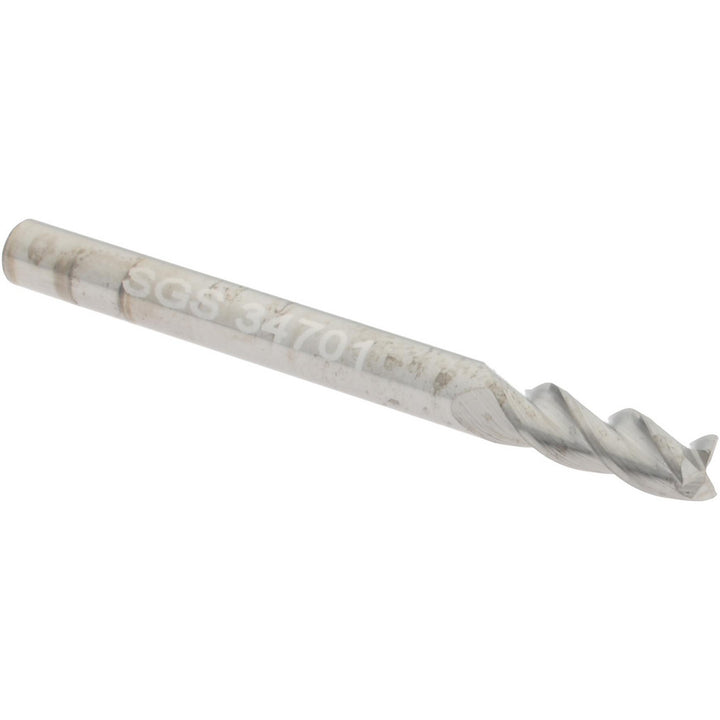

1/8" 3-Flute Solid Carbide Square End Mill - SGS 34701

SGS

1/8" 3-Flute Solid Carbide Square End Mill - SGS 34701

MFR# 34701Series 43

$21.90List $27.59 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide

Description

The SGS 34701 is a 1/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3/8 length of cut, 1-1/2 overall length. Series 43.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3/8
Length typeRegular
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.00000/-0.00032 in
Number of flutes3
Overall length in1-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel1/8" 3-Flute High Speed Steel Square End Mill - Hertel E1043008 $20.02 Kennametal0.1250" 3-Flute Solid Carbide Single End Mill - Kennametal 5059213 $42.70 Helical Solutions1/8" 3-Flute Solid Carbide Corner Radius End Mill, Zplus - Helical Solutions 82404 $45.55 SGS1/8" 3-Flute Solid Carbide Square End Mill, TiN - SGS 39777 $18.53
