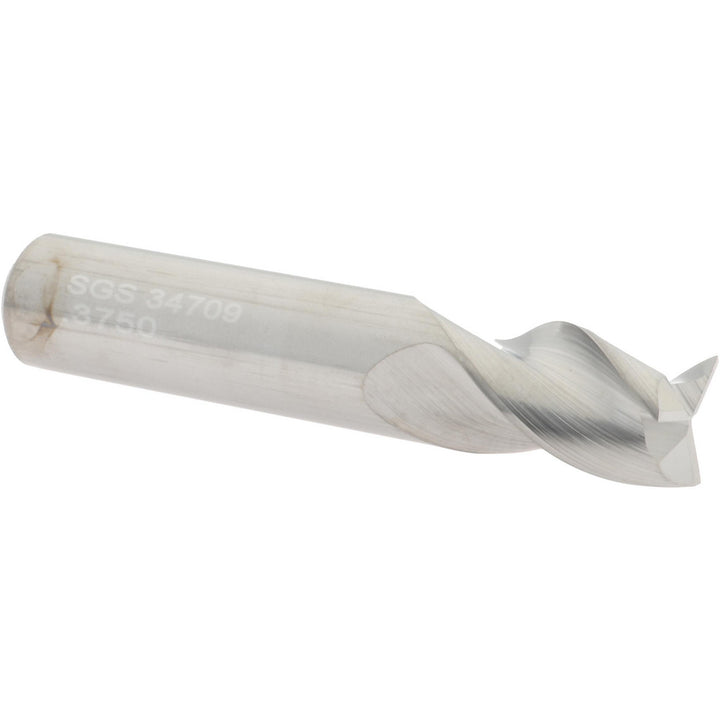

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34709

SGS

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34709

MFR# 34709Series 43

$49.81List $63.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide

Description

The SGS 34709 is a 3/8 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1/2 length of cut, 2 overall length. Series 43.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes3
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal0.3750" 3-Flute Solid Carbide Single End Mill - Kennametal 3658824 $68.27 Helical Solutions3/8" 3-Flute Solid Carbide Corner Radius End Mill, Zplus - Helical Solutions 88032 $63.60 Iscar3/8" 3-Flute Solid Carbide Square End Mill, DLC - Iscar 3399003 $63.63 Helical Solutions3/8" 3-Flute Solid Carbide Square End Mill, Zplus - Helical Solutions 03332 $54.74
