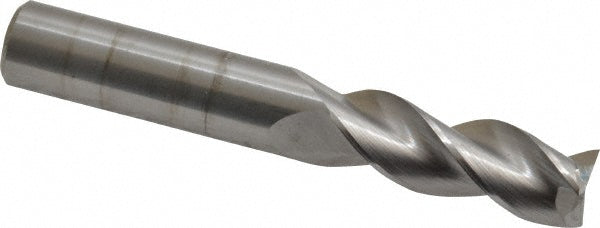

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34710

SGS

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34710

MFR# 34710Series 43

$52.45List $67.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide

Description

The SGS 34710 is a 3/8 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 43.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes3
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
