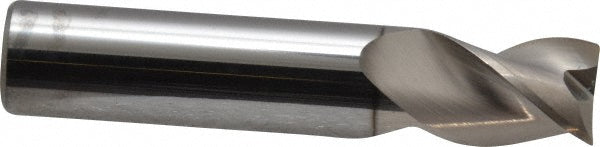

1/2" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34739

SGS

1/2" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34739

MFR# 34739Series 43

$81.43List $104.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 34739 is a 1/2 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 5/8 length of cut, 2-1/2 overall length. Series 43.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.00000/-0.00043 in
Number of flutes3
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
