SGS

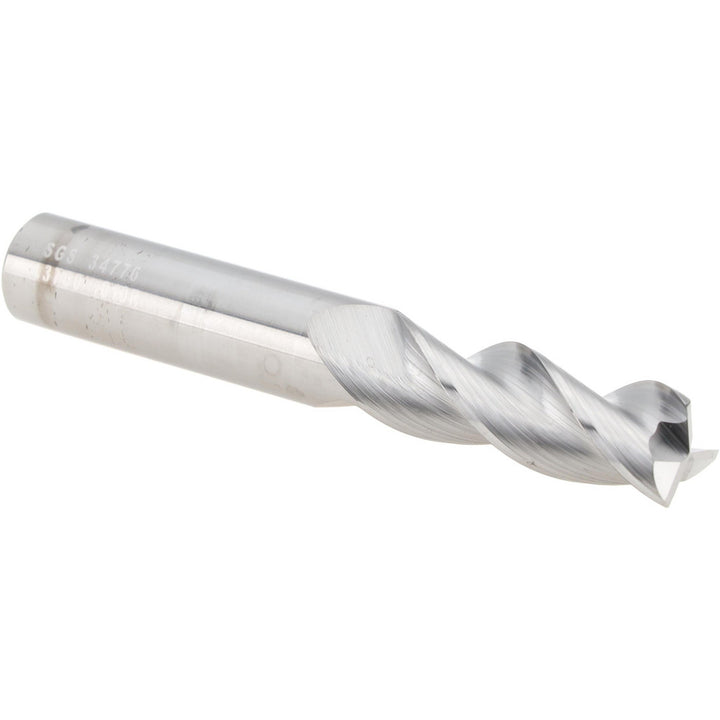

3/8" 3-Flute Solid Carbide Corner Radius End Mill - SGS 34776

MFR# 34776Series 43CR

$55.17List $70.75 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 34776 is a 3/8 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 43CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0100

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1

Length typeStandard

Manufacturers catalog number34776

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/8

Mill diameter tolerance-0.0004/0.0000 in

Number of flutes3

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
