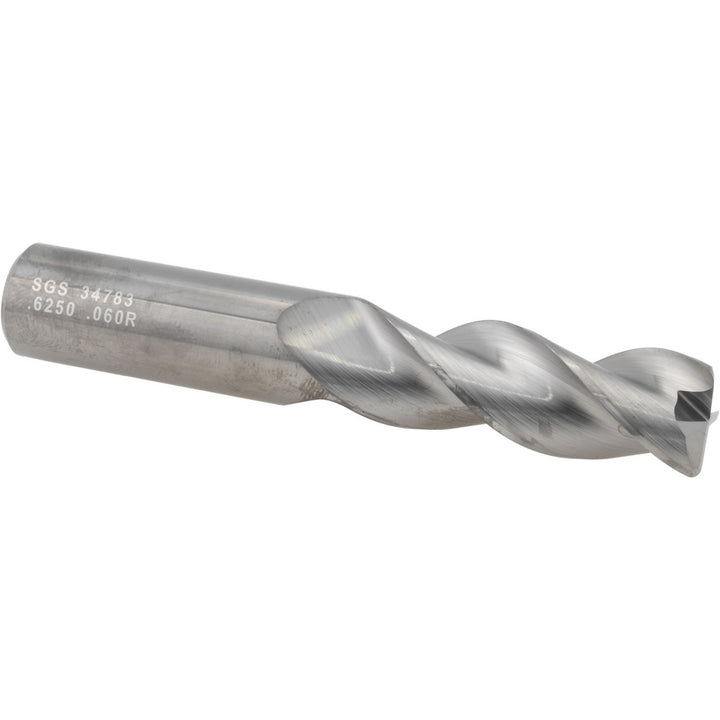

5/8" 3-Flute Solid Carbide Corner Radius End Mill - SGS 34783

MFR# 34783Series 43CR

$179.56List $230.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 34783 is a 5/8 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 3-3/4 overall length. Series 43CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0600

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1-5/8

Length typeStandard

Manufacturers catalog number34783

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in5/8

Mill diameter tolerance-0.0004/0.0000 in

Number of flutes3

Overall length in3-3/4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
