SGS

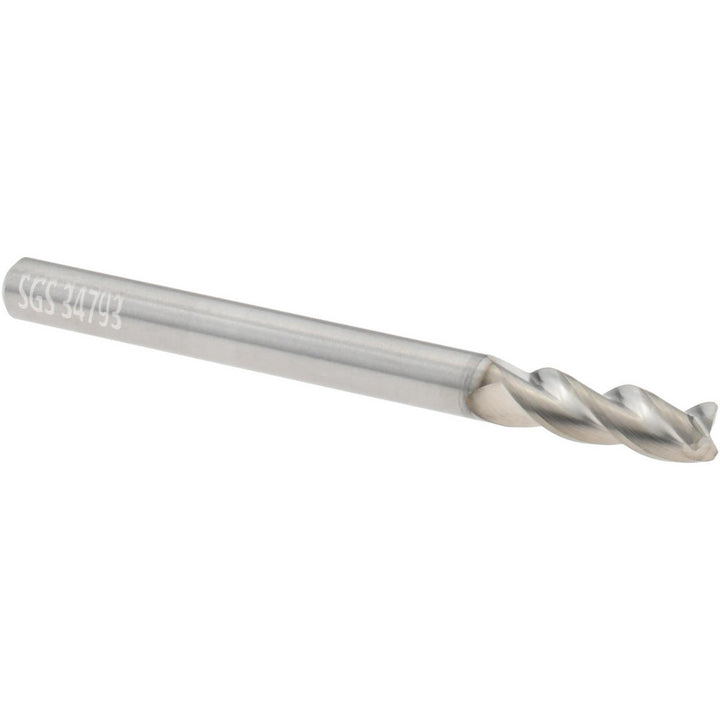

1/8" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34793
MFR# 34793Series 43CR
$27.67List $34.87
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingTIB2
Description
The SGS 34793 is a 1/8 3-flute Solid Carbide corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 3/8 length of cut, 1-1/2 overall length. Series 43CR.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTIB2
Coolant throughNo
Corner radius0.0100
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in3/8
Length typeStandard
Manufacturers catalog number34793
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in1/8
Mill diameter tolerance-0.0003/0.0000 in
Number of flutes3
Overall length in1-1/2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
