SGS

3/16" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34794

MFR# 34794Series 43CR

$33.97List $43.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingTIB2

Description

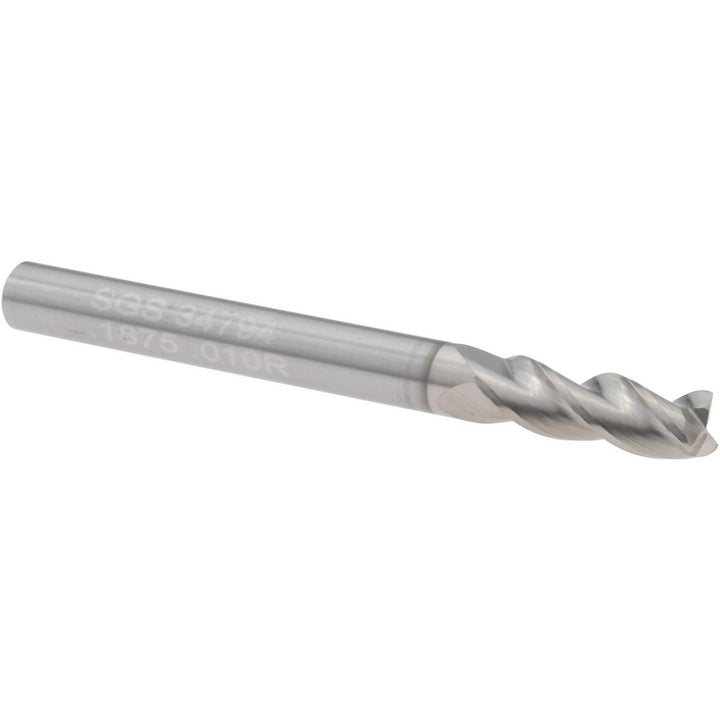

The SGS 34794 is a 3/16 3-flute Solid Carbide corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 9/16 length of cut, 2 overall length. Series 43CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTIB2

Coolant throughNo

Corner radius0.0100

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in9/16

Length typeStandard

Manufacturers catalog number34794

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/16

Mill diameter tolerance-0.0003/0.0000 in

Number of flutes3

Overall length in2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
