SGS

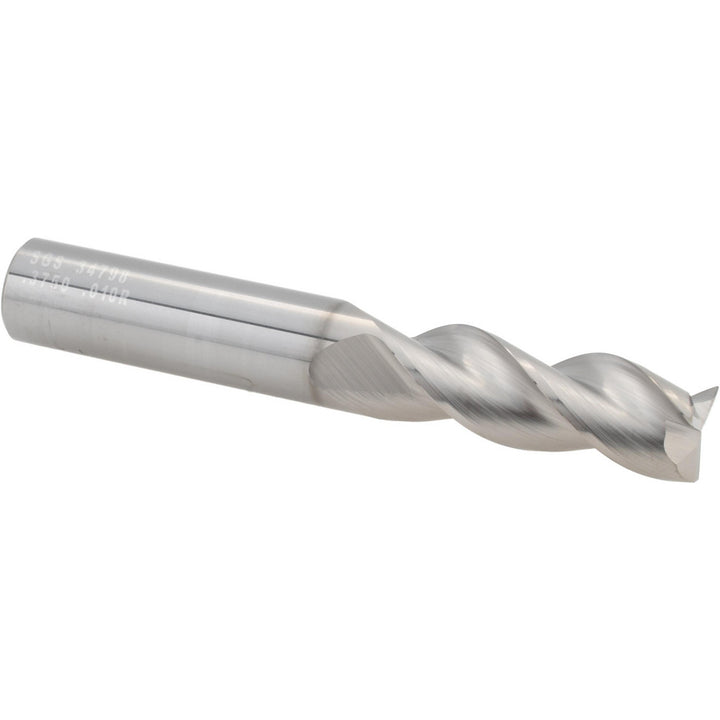

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34798
MFR# 34798Series 43CR
$79.92List $100.73
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingTIB2
Description
The SGS 34798 is a 3/8 3-flute Solid Carbide corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 43CR.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTIB2
Coolant throughNo
Corner radius0.0100
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1
Length typeStandard
Manufacturers catalog number34798
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in3/8
Mill diameter tolerance-0.0004/0.0000 in
Number of flutes3
Overall length in2-1/2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
