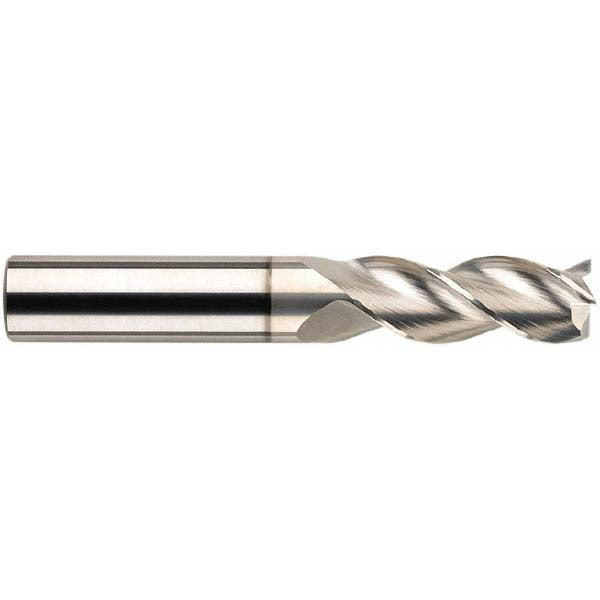

3/16" 3-Flute Solid Carbide Square End Mill - SGS 34822

SGS

3/16" 3-Flute Solid Carbide Square End Mill - SGS 34822

MFR# 34822Series 43

$21.54List $27.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide

Description

The SGS 34822 is a 3/16 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 5/16 length of cut, 2-1/2 overall length. Series 43.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeRegular
Mill diameter in3/16
Mill diameter tolerance+0.00000 to -0.00032 in
Number of flutes3
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
