SGS

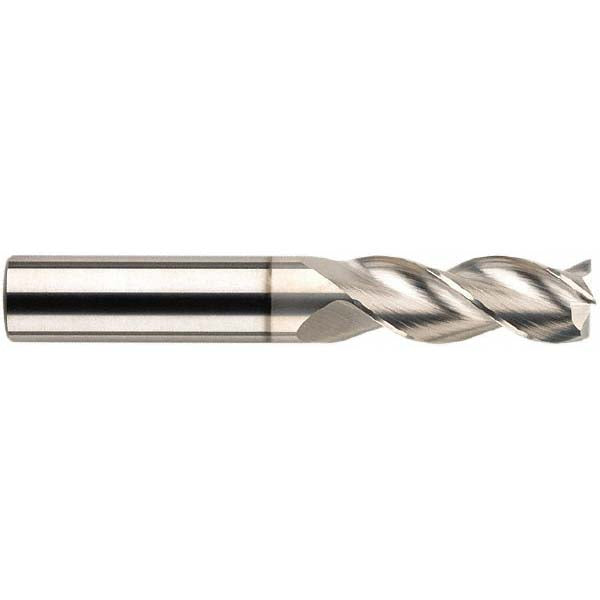

1/4" 3-Flute Solid Carbide Square End Mill - SGS 34824
MFR# 34824Series 43
$35.41List $44.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
Description
The SGS 34824 is a 1/4 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series 43.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Mill diameter in1/4
Mill diameter tolerance+0.00000 to -0.00035 in
Number of flutes3
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
