SGS

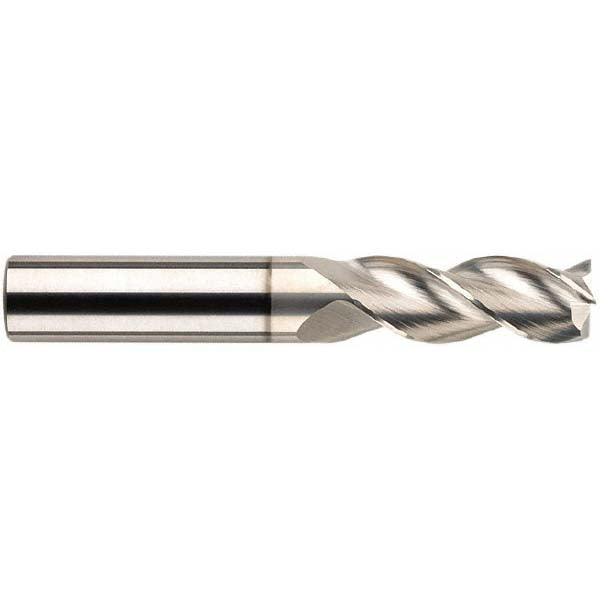

1/4" 3-Flute Solid Carbide Square End Mill - SGS 34825
MFR# 34825Series 43
$39.78List $51.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
Description
The SGS 34825 is a 1/4 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1 length of cut, 3 overall length. Series 43.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in1/4
Mill diameter tolerance+0.00000 to -0.00035 in
Number of flutes3
Overall length in3
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
