3/8" 3-Flute Solid Carbide Square End Mill - SGS 34827

SGS

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34827

MFR# 34827Series 43

$59.30List $76.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide

Description

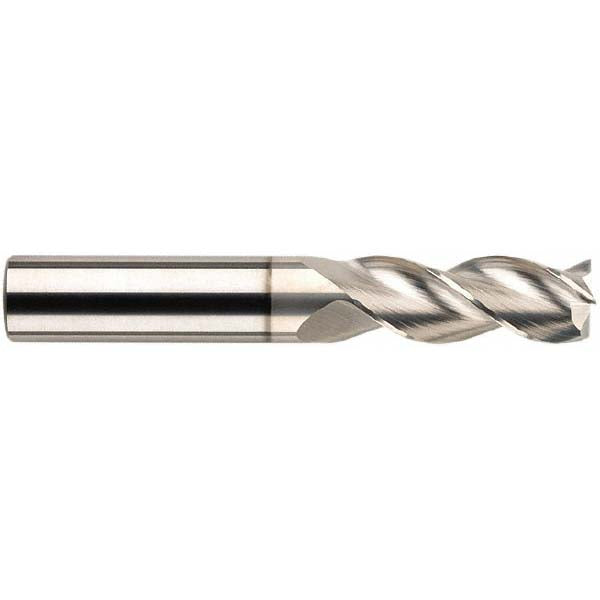

The SGS 34827 is a 3/8 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 43.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.00000 to -0.00035 in
Number of flutes3
Overall length in3-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
