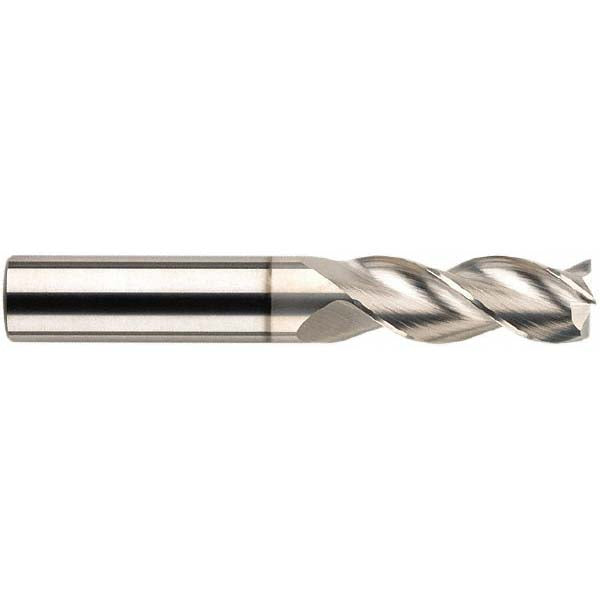

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34828

SGS

3/8" 3-Flute Solid Carbide Square End Mill - SGS 34828

MFR# 34828Series 43

$82.56List $105.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide

Description

The SGS 34828 is a 3/8 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 2 length of cut, 4 overall length. Series 43.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in2
Length of cut range2.0000+
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.00000 to -0.00035 in
Number of flutes3
Overall length in4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
