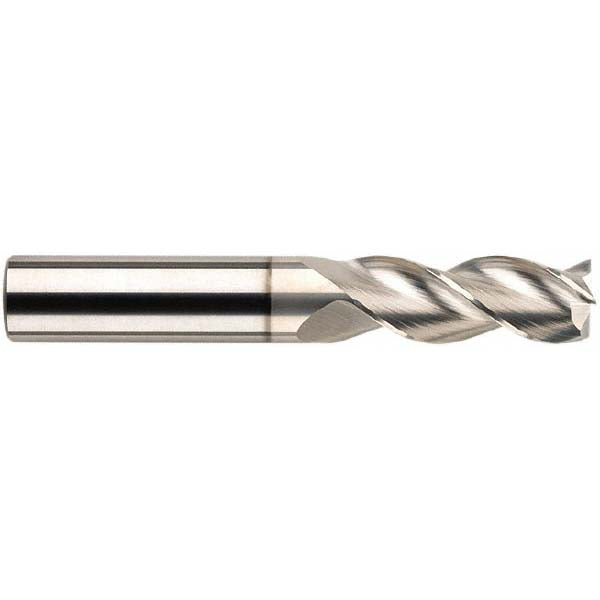

1/2" 3-Flute Solid Carbide Square End Mill - SGS 34831

SGS

1/2" 3-Flute Solid Carbide Square End Mill - SGS 34831

MFR# 34831Series 43

$106.28List $136.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide

Description

The SGS 34831 is a 1/2 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series 43.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.00000 to -0.00043 in
Number of flutes3
Overall length in4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
