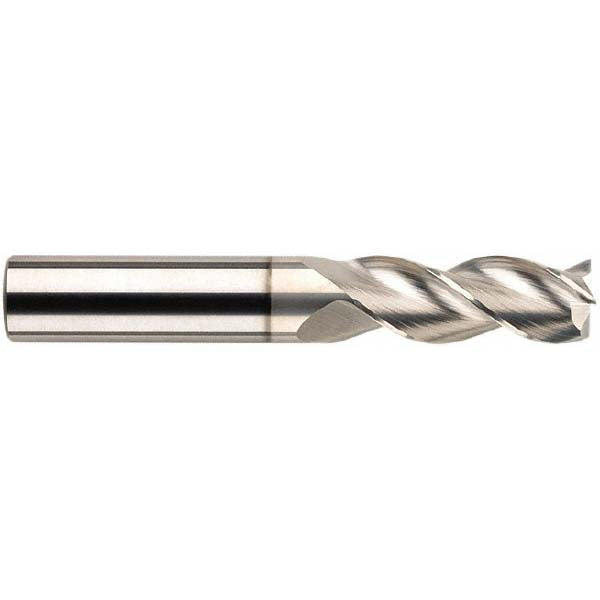

5/8" 3-Flute Solid Carbide Square End Mill - SGS 34834
MFR# 34834Series 43
$268.12List $343.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
Description
The SGS 34834 is a 5/8 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 3-1/4 length of cut, 6 overall length. Series 43.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3-1/4
Length of cut range2.0000+
Length typeRegular
Mill diameter in5/8
Mill diameter tolerance+0.00000 to -0.00043 in
Number of flutes3
Overall length in6
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
