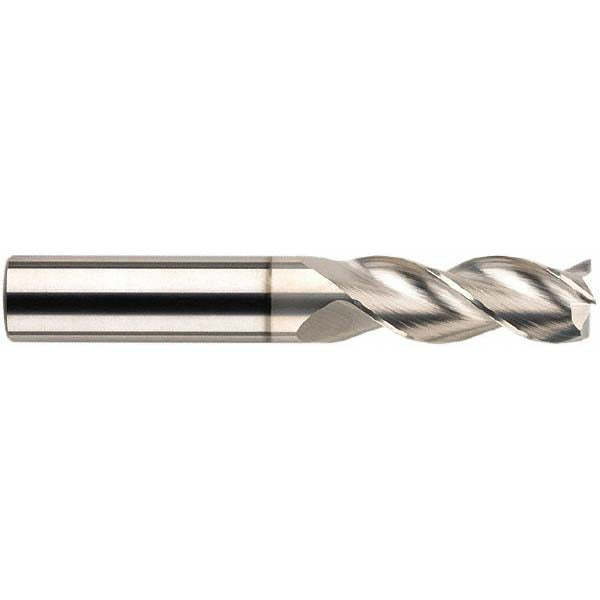

1" 3-Flute Solid Carbide Square End Mill - SGS 34835

SGS

1" 3-Flute Solid Carbide Square End Mill - SGS 34835

MFR# 34835Series 43

$584.81List $750.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide

Description

The SGS 34835 is a 1 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 4-1/8 length of cut, 7 overall length. Series 43.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in4-1/8
Length of cut range2.0000+
Length typeRegular
Mill diameter in1
Mill diameter tolerance+0.00000 to -0.00051 in
Number of flutes3
Overall length in7
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
