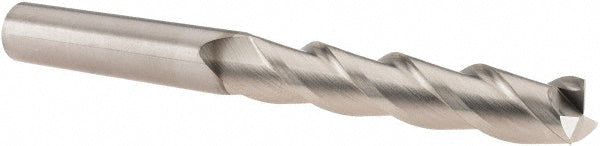

1/2" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34867

SGS

1/2" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34867

MFR# 34867Series 43

$182.42List $233.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 34867 is a 1/2 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 2-1/2 length of cut, 5 overall length. Series 43.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in2-1/2
Length of cut range2.0000+
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.00000 to -0.00043 in
Number of flutes3
Overall length in5
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
