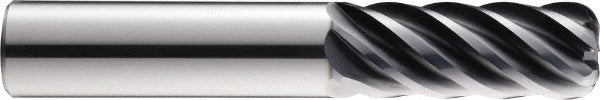

3/8in" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35113

SGS

3/8in" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35113

MFR# 35113Series 51CR

$83.54List $107.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes6
MaterialSolid Carbide
CoatingTX

Description

The SGS 35113 is a 3/8in 6-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1in length of cut, 2-1/2in overall length. Series 51CR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0150
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/8in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes6
Overall length in2-1/2in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
