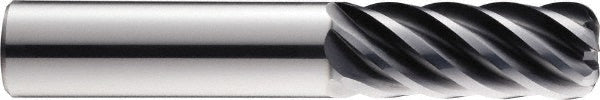

1/2in" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35116

SGS

1/2in" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35116

MFR# 35116Series 51CR

$113.15List $145.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes6
MaterialSolid Carbide
CoatingTX

Description

The SGS 35116 is a 1/2in 6-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/4in length of cut, 3in overall length. Series 51CR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0900
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-1/4in
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in1/2in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes6
Overall length in3in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
