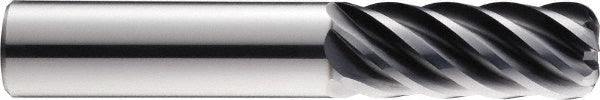

3/4" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35121

SGS

3/4" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35121

MFR# 35121Series 51CR

$299.69List $384.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes6
MaterialSolid Carbide
CoatingTX

Description

The SGS 35121 is a 3/4 6-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-5/8 length of cut, 4 overall length. Series 51CR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-5/8
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in3/4
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes6
Overall length in4
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
