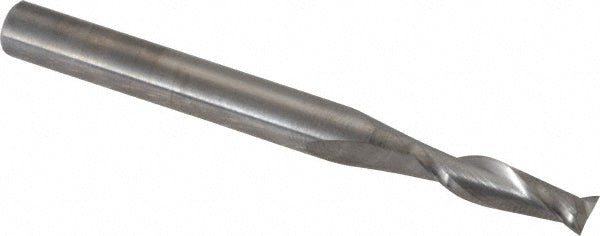

5/32" 2-Flute Solid Carbide Square End Mill - SGS 35278

SGS

5/32" 2-Flute Solid Carbide Square End Mill - SGS 35278

MFR# 35278Series 52

$22.00List $28.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes2
MaterialSolid Carbide

Description

The SGS 35278 is a 5/32 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 9/16 length of cut, 2 overall length. Series 52.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length typeRegular
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
